Description
Overview

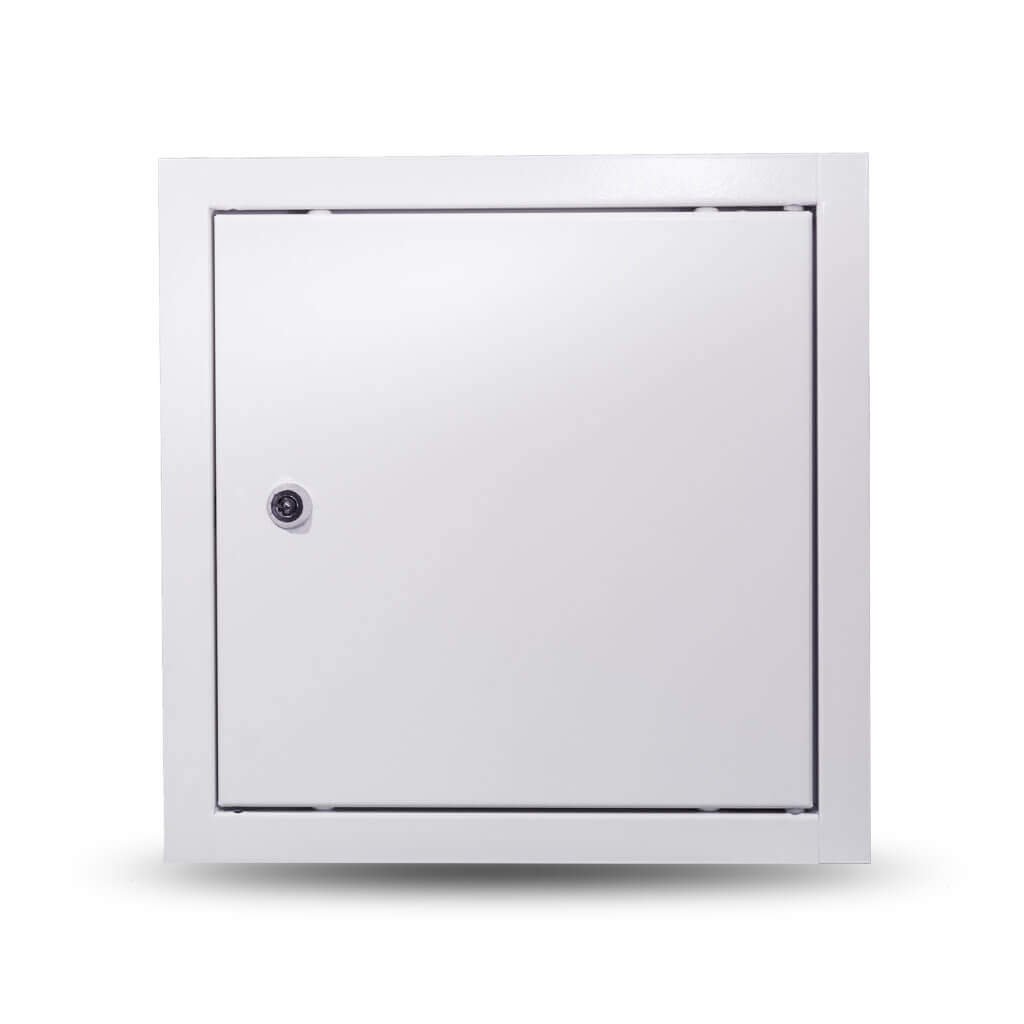

Anti-ligature access panels for secure access to building services.
Supplied powder-coated white and suitable for over-painting.
Larger panels use a full-length piano hinge, while smaller panels use unique pivot hinges.
Fitted with a sealed Radial Pin Tumbler (RPT) lock with no opportunity for a ligature point and no exposed holes or openings.
Specified with insulation, FR60 fire rating and 35 dB acoustic reduction.
Available with beaded or picture frame.
Key Features
- High-security anti-ligature design with sealed RPT lock
- Powder-coated white metal door (paintable)
- Hinges: piano on larger sizes; pivot on smaller sizes
- Frames: beaded (skim-in) or picture (surface-mounted)
- FR60 (60-minute) fire rating and 35 dB acoustic reduction
Anti-ligature Disclaimer
Anti-ligature features do not replace required supervision or other necessary measures for at-risk users.
Products are not sold as “ligature-free”; ensure suitability for the intended environment before use.
Technical Specifications
| Acoustic Rating | 35 dB |
|---|---|
| Door Type | Metal Door |
| Fire Rating | FR60 |
| Frame | Beaded Frame, Picture Frame |
| Lock Type | Tamperproof Lock (RPT) |
| Size | 1200 × 550 mm, 1200 × 600 mm, 200 × 200 mm, 300 × 300 mm, 450 × 450 mm, 550 × 550 mm, 600 × 300 mm, 600 × 600 mm, 900 × 550 mm, 900 × 600 mm |
| Aperture | Ceiling, Wall |
| Hinge Type | Piano Hinge |
| Bespoke Sizes Available | Please call our Technical Sales Team for more information |
