Description

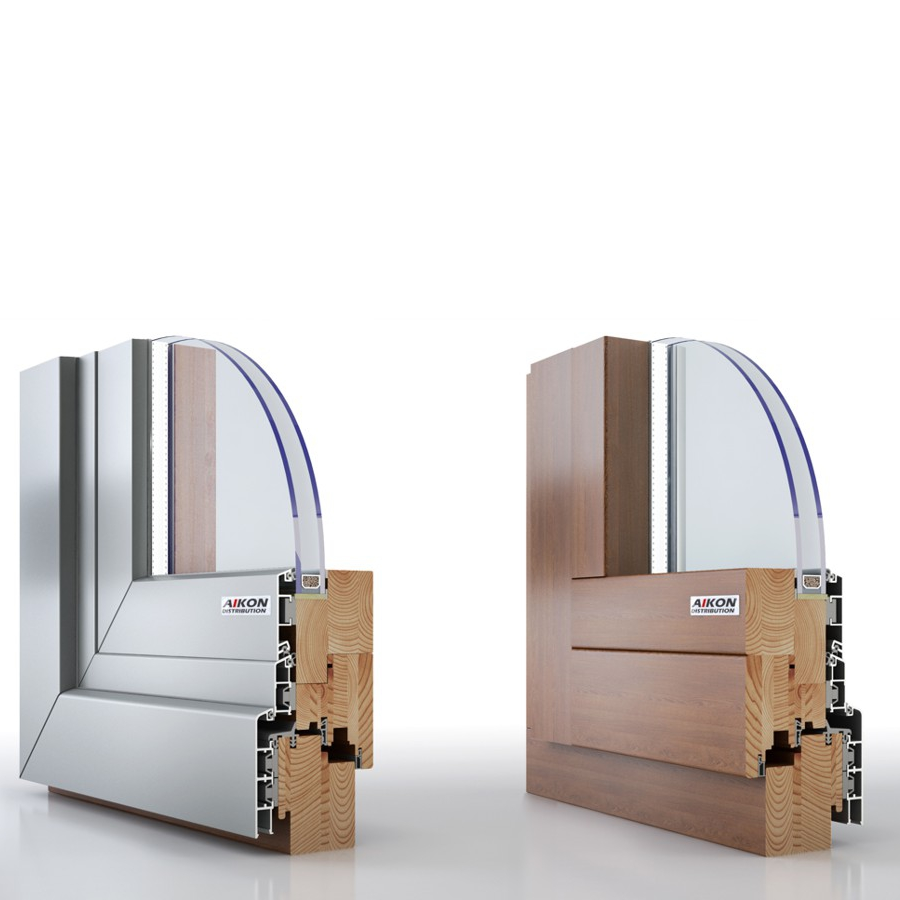

Ecoline timber windows and doors with aluminium overlay feature durable three-layer laminated frames, providing excellent resistance to harsh weather conditions. Their modern design, combined with a wide selection of RAL colours, allows them to seamlessly complement a variety of architectural facades.
The Ecoline system offers an ideal balance of performance, aesthetics, and value in timber-aluminium window solutions.

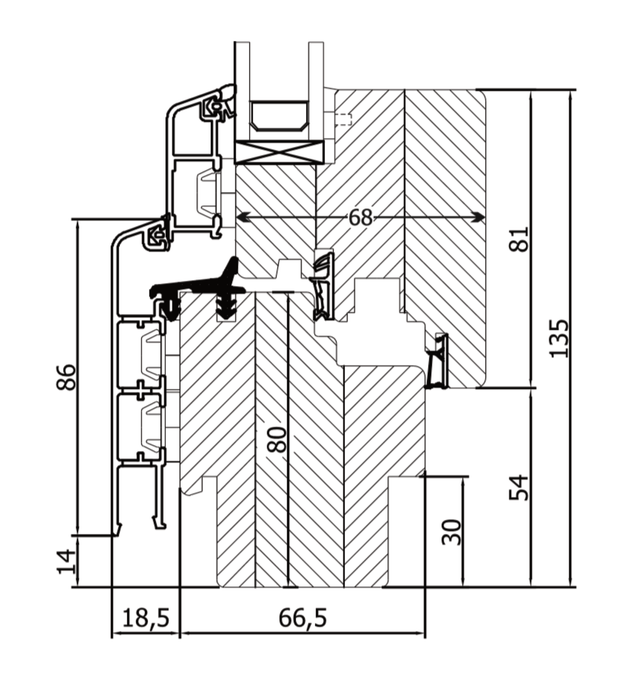

Technical Data
| Frame thickness | 68 mm |
|---|---|
| Heat transfer coefficient | Uf = 1.4 W/m²·K |
| Gasket | Single internal EPDM gasket |
| Available thickness of glazing units | 24 mm – 32 mm |
| Standard glazing | 4/16Ar/4 [Rw=32dB, Lt=82%, g=65%] |
| Profile structure | 3-layer glued scantling |
| Standard handle | Hoppe Secustic |
| Warranty | 5 years on the structure |
| Certifications | CE, ITB, LTB, FSC |
| Other standard accessories | Aluminium overlay |
| Turnaround | 9 – 14 weeks |
The aluminium overlay can be applied to any tilt-and-turn timber profile offered by DKP Joi.
