Description
Overview

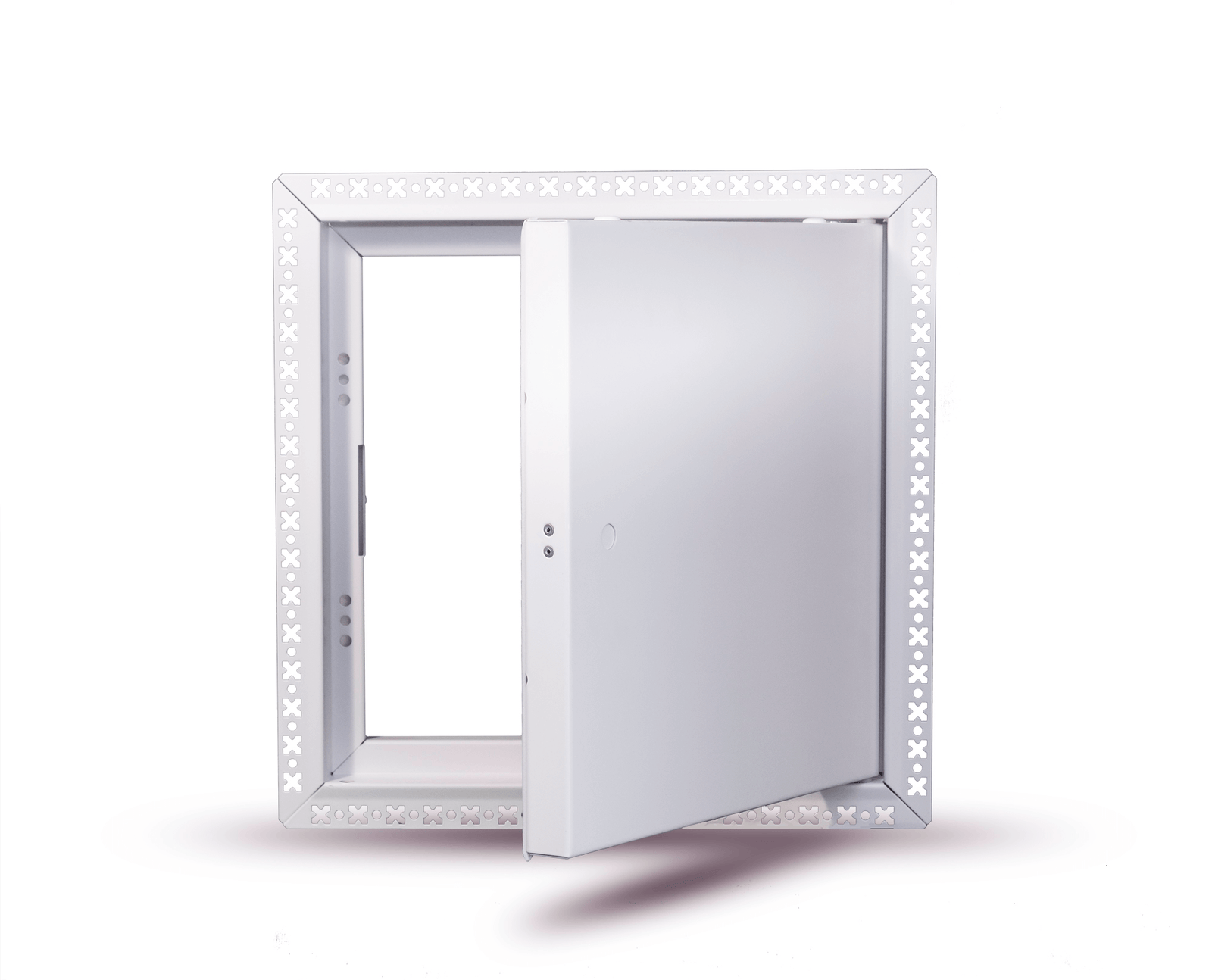

Premium metal access panel for discreet access to services in walls or ceilings.
Available with fire and acoustic options, plus multiple frame and lock configurations to suit your project.
Key Features
- Wall or ceiling installation
- Fire rating options: FR60 (60 min) or FR120 (120 min), or non–fire rated
- Acoustic options: 37 dB or 38 dB, or non-acoustic
- Frames: Beaded (flush/skim-in) or Picture frame (surface-mounted)
- Locks: Euro profile (Left/Right), SLIK® invisible keyhole, Tamper-proof (RPT), or Touch-catch
- Hinges: Pin hinge as standard; piano hinge option available on request
- Finish: Powder-coated white (paintable)
Technical Specifications
| Application | Wall or Ceiling |
|---|---|
| Door Type | Metal Door |
| Frame | Beaded Frame or Picture Frame |
| Lock Type | Euro Profile (Left/Right), SLIK Invisible Keyhole, Tamper-proof Lock (RPT), Touch-catch |
| Fire Rating | None, FR60 (60 minutes), FR120 (120 minutes) |
| Acoustic Rating | None, 37 dB, 38 dB |
| Hinge Type | Pin (piano hinge option available on request) |
| Finish | Powder-coated white; can be over-painted |
| Standard Sizes | 150×150, 200×200, 300×300, 450×450, 550×550, 600×300, 600×600, 900×550, 900×600, 1200×550, 1200×600 mm |
| Bespoke Sizes | Available on request – contact Technical Sales |
| Lead Time | Please call for current lead time |
